RSP1B

£105.80 ex. VATApproximately $143.18 (USD)

Entry Level Receiver

SKU: RSP1B Category: Tag:

Description

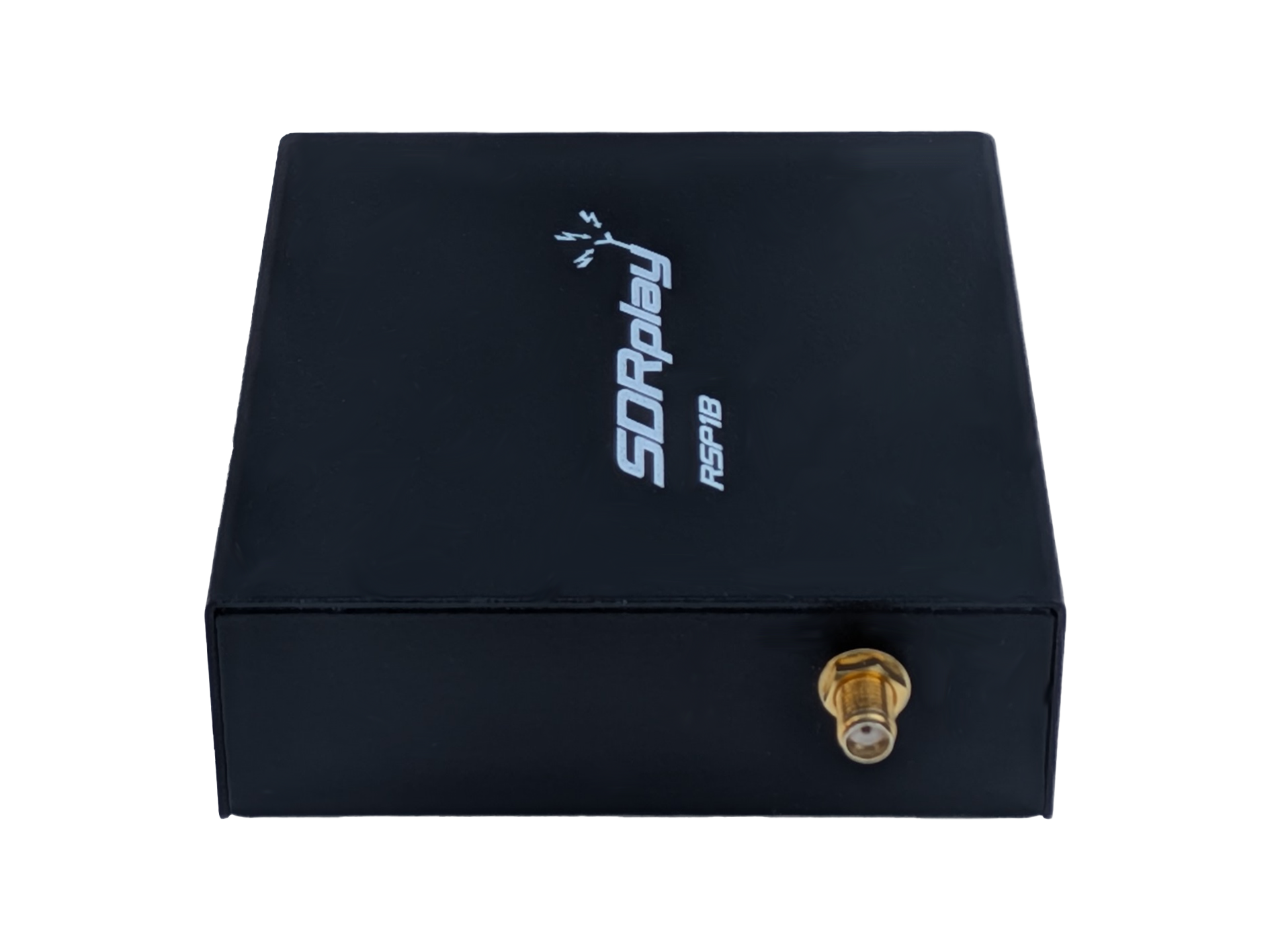

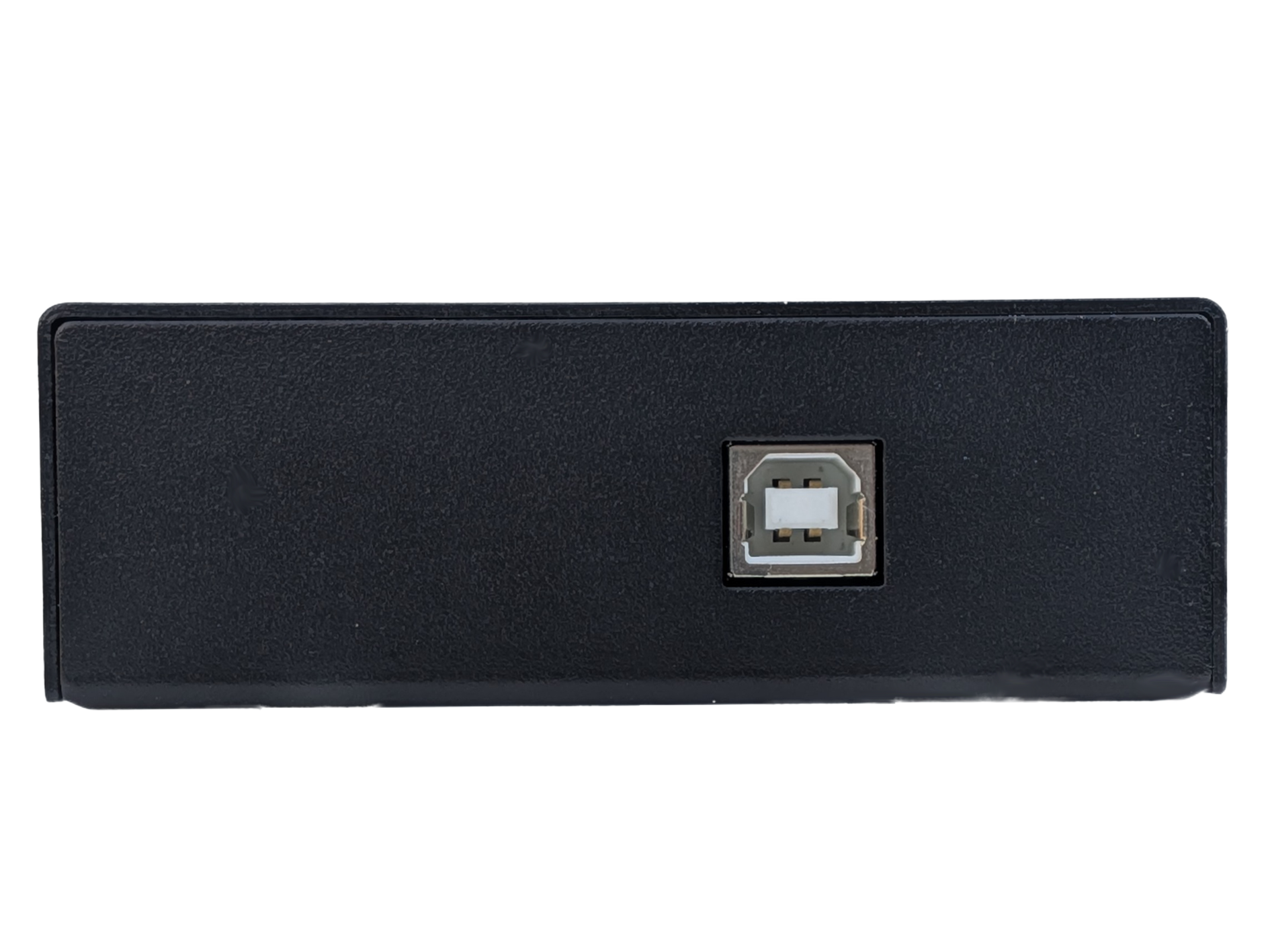

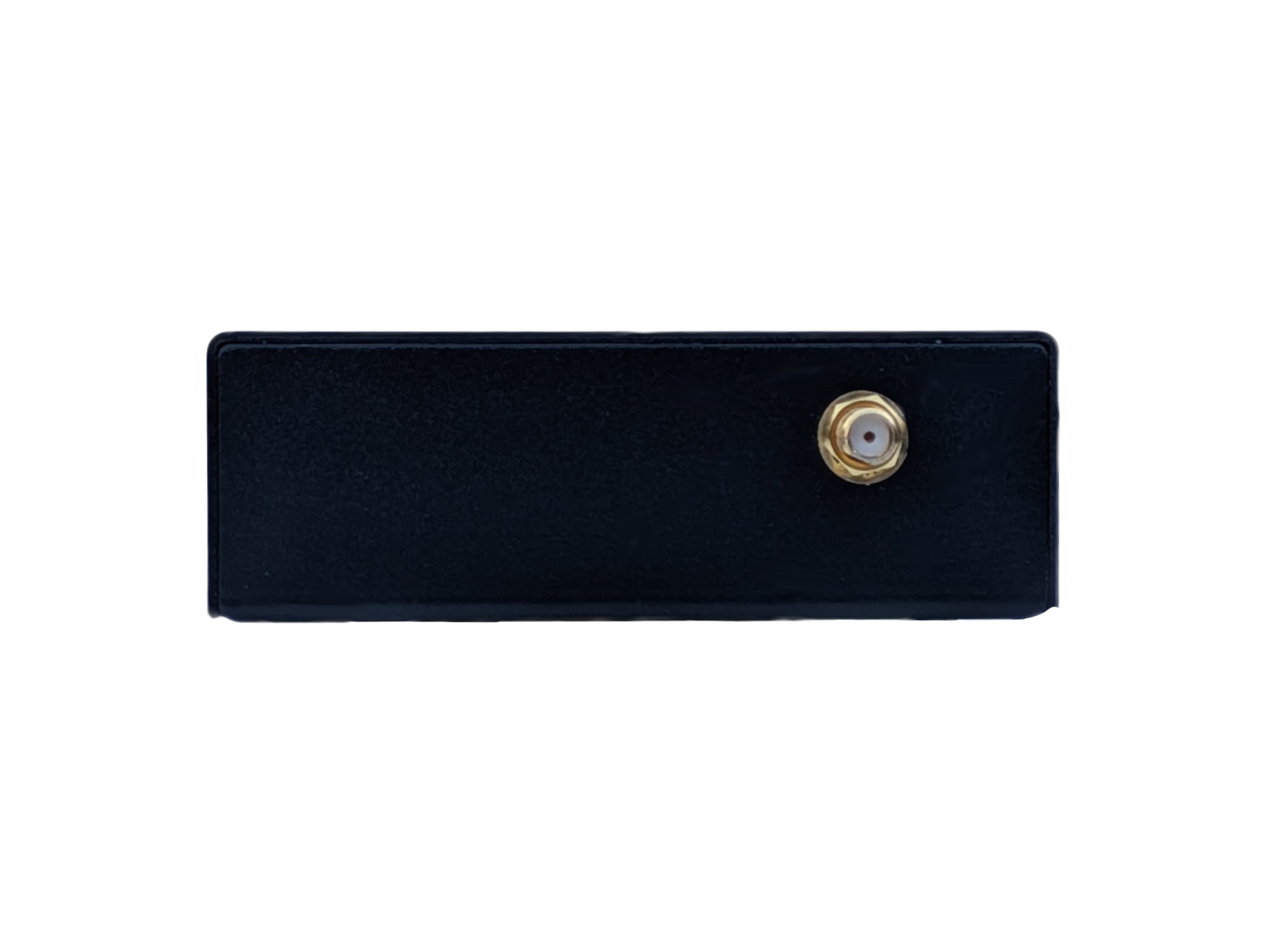

Get into SDR with the RSP1B.  With its wideband frequency coverage and the ability to monitor up to 10MHz of spectrum at a time there is no better way to discover the power of SDR.  The device is equipped with an array of in-built precision preselection filters which switch seamlessly in and out to maximise your RF performance.  The device carries its own Bias-T which can be used to drive an external LNA or application circuits.  With switchable MW and FM notch filters built in the RSP1B is the complete all round SDR package, there is no better way to get into SDR and discover the wide range of applications that await.

Additional information

Weight 0.315 kg
Dimensions 9.8 × 9.4 × 3.5 cm
Unique Features

An ideal way to start your Journey into SDR

Receiver Type

Single Tuner

Antenna Connector

SMA

Frequency Coverage

1kHz – 2GHz continuous

Band Filters

11 Band Filters

Additional Filters

AM/FM and DAB switchable Notch Filters

Useable Temperature Range

-10C to +60C

Maximum Input Power

0dBm continuous, +10dBm Burst

Power

USB Powered

  1. Download & Install SDRconnect
  2. Connect the RSP1B to the USB port of your host device
  3. Start SDRconnect and you'll see the device in the top left
  4. Press Play and start to tune around
